Overview

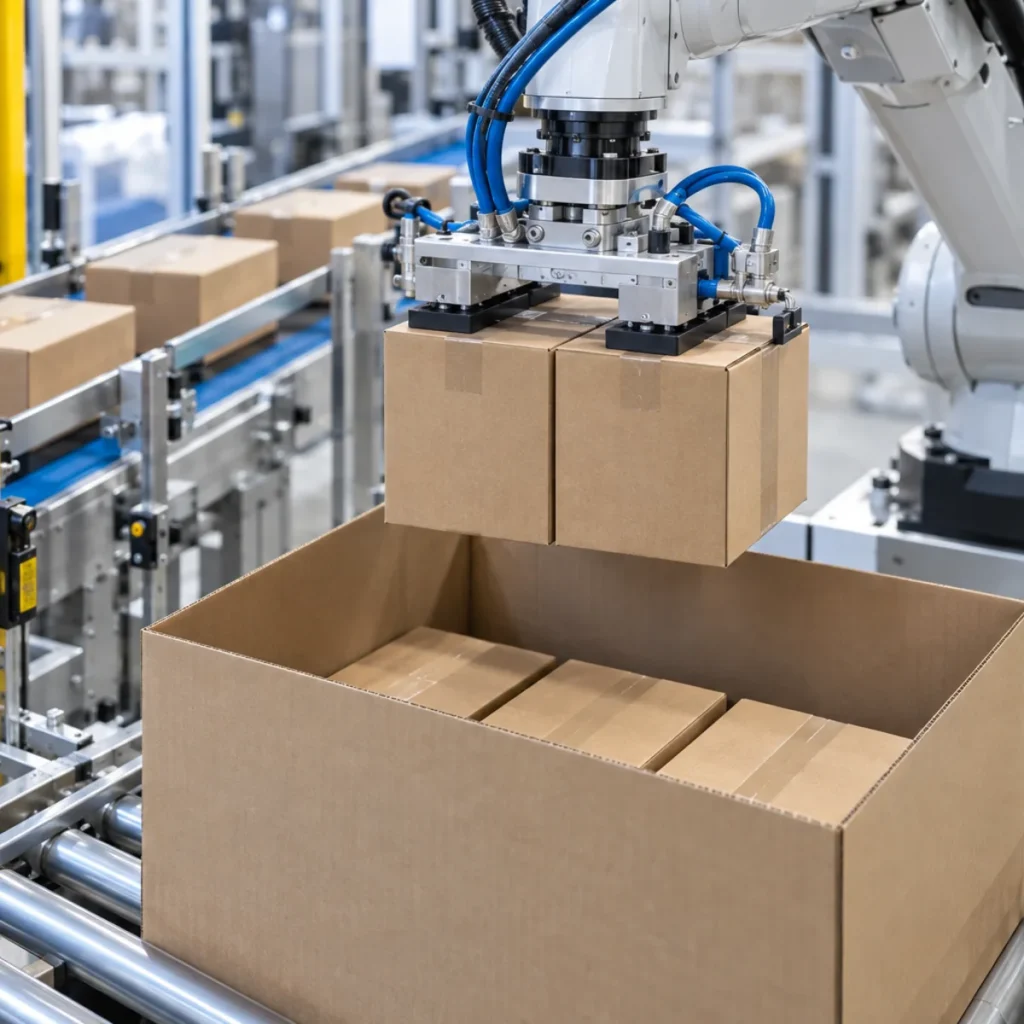

The NRA-900 brings a six-axis robot, vision-ready tooling and case handling into one guarded cell for manufacturers moving beyond manual case packing.
Performance Highlights
- Recipe-based format selection for multiple SKUs
- Servo case indexing and controlled carton placement
- Safety guarding, interlocks and HMI fault guidance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NRA-900 |
| Payload | 35 kg at wrist |
| Cell speed | Up to 12 cases/min |
| Carton formats | 80–450 mm product width |
| Robot reach | 2,050 mm |
| Control interface | EtherNet/IP or Profinet |
Line Integration
The cell accepts cartons from a wrapper, cartoner or conveyor and can hand off to palletizing. NEXORA maps accumulation, case erecting, sealing and label verification in one line study.
Typical Applications
Built for food, household, personal care and general consumer products where frequent carton changes make fixed mechanical packers less flexible.
Project Support
A project package includes end-of-arm tooling review, virtual cycle-time check, FAT with production samples, installation guidance and preventive maintenance documentation.
